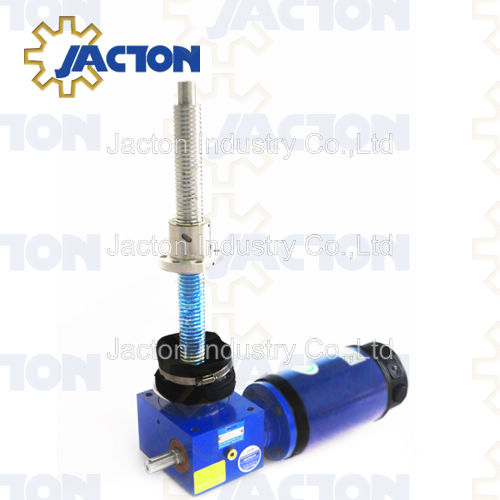

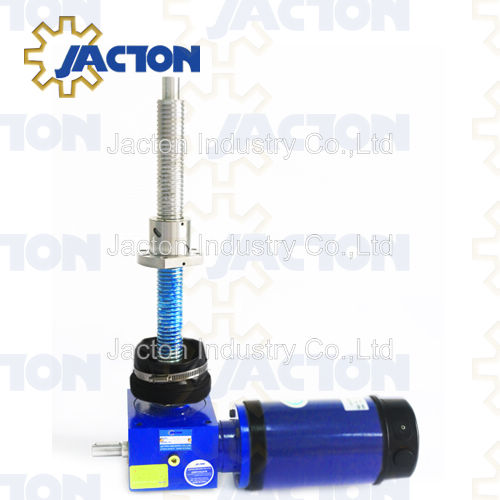

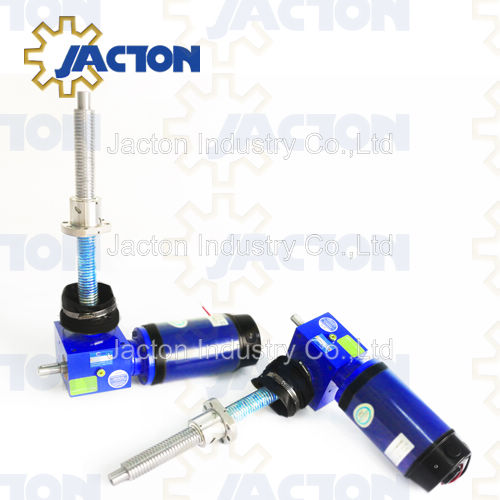

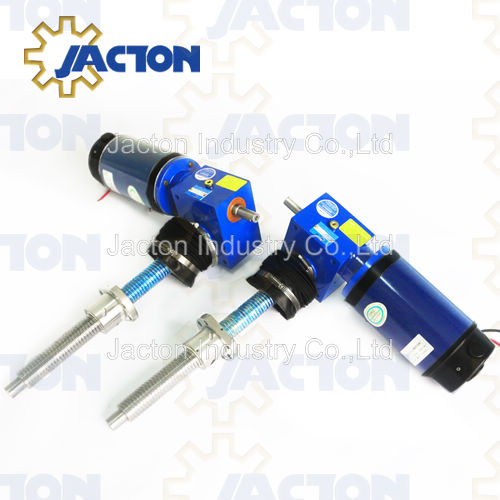

| 300 kN Cubic Ball Screw Jack actuators may be used individually, in tandem or in multiple arrangements, connected by shafting, couplings and miter gear boxes. Special models are also available. Single end worm shafts with left or right hand extensions are furnished at no extra charge. | |||||||||
JTD300
JACTON
Product Description

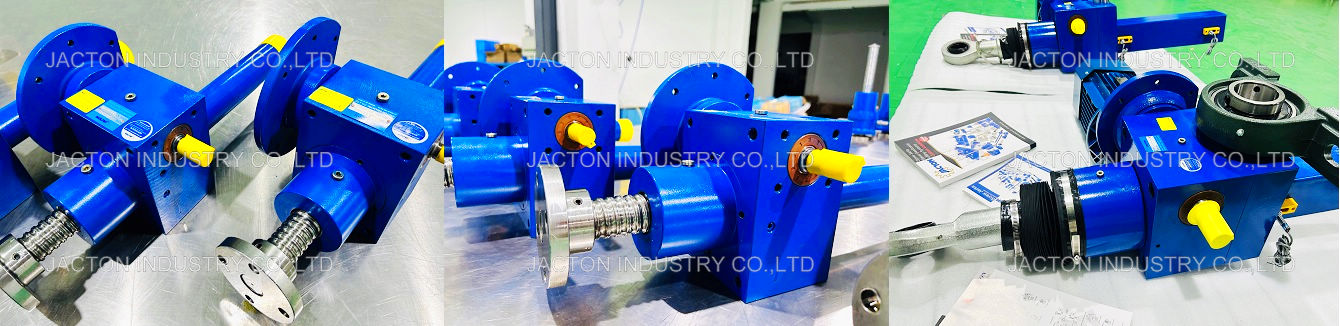

Cubic Ball Screw Jack 300 kN-100x20-Ball Screw. Ball Screw Actuator Advantages: Move loads and apply force more efficiently than other mechanical actuators. Permit faster operation and longer life under load. Require less power by providing positive mechanical action. Permit synchronization of multiple units. Handles full load in tension or compression. High Speed -Low friction permits linear motion in some models up to 3000 mm per minute at 1500 rpm worm shaft speeds, providing maximum horsepower ratings are not exceeded. Positive Action -Operates with a high degree of reliability, without the need for costly pumps, hoses or valves. Precise Positioning -High efficiency means accurate control, even in multiple actuator arrangements. Long Life -Low friction means longer operating life. Low Power Usage -Highly efficient design means less power is needed to achieve a given thrust; power needs are as much as two-thirds that of machine screw actuators, with savings in motors, couplings, reducers, shafting and controls.
Main Features
* Maximum static load capacities 300 kN (30000kg).
* High precision ball screw sizes 100x20.
* Two gear ratios: high ratio 10:1, slow ratio 40:1, for high and slow linear speeds (up to 3 m/min)
* Custom stroke length of ball screw, maximum stroke 6000 mm in compression load, 9000 mm in tension load.
* Basic designs: Translating screw, Anti-rotation screw, and Rotating screw.
* Upright or Inverted mounting. Available in tension or compression loads.
* Ball screw end fittings: top plate, clevis end, threaded end, plain end, fork head and rod end.
* Standard with single lead ball screw, custom double or high lead ball screw which offers increased travel speed. Both of them require a brake or external locking device to hold position.
* Power source: manual hand wheel is not recommended, electrically by brake motor drive.
* Can be applied either individually use or combined into a exactly synchronized lifting system(multiple jack systems), linked by connecting shafts, bevel gearboxes, couplings, electric motors, gear reducers, limit switches and pillow blocks etc.
* Can be used as alternatives to hydraulic and pneumatic systems.
* High accuracy, high efficiency, high performance, high duty cycle, low backlash, long service life, and uniform lifting speed.

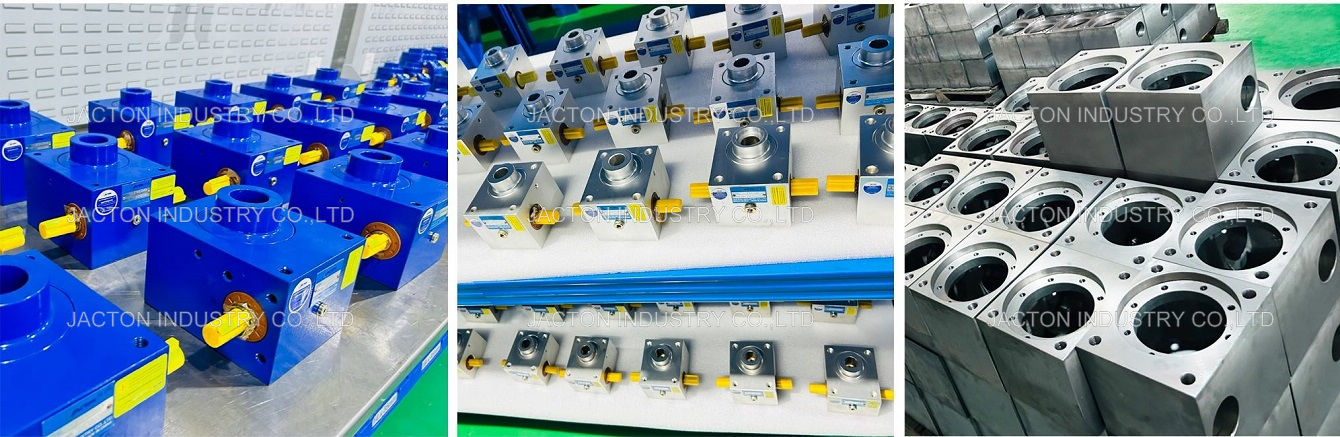

Product Material
We use the best materials to guarantee the performance and lifetime of the 300 kN Cubic Ball Screw Jack you purchased.
Ball screw and nut is made from hardened alloy steel with hardened bearing balls carrying the load between nut and screw.
* Housing: High-strength Casting Housing, Ductile Iron.
* Ball Screw: SCM 450, S55C, Hardness: HRC 58-62.
* Ball Nut: SCM415H, Hardness: HRC 58-62
* Ball: SUJ2, Hardness: HRC 60 UP.

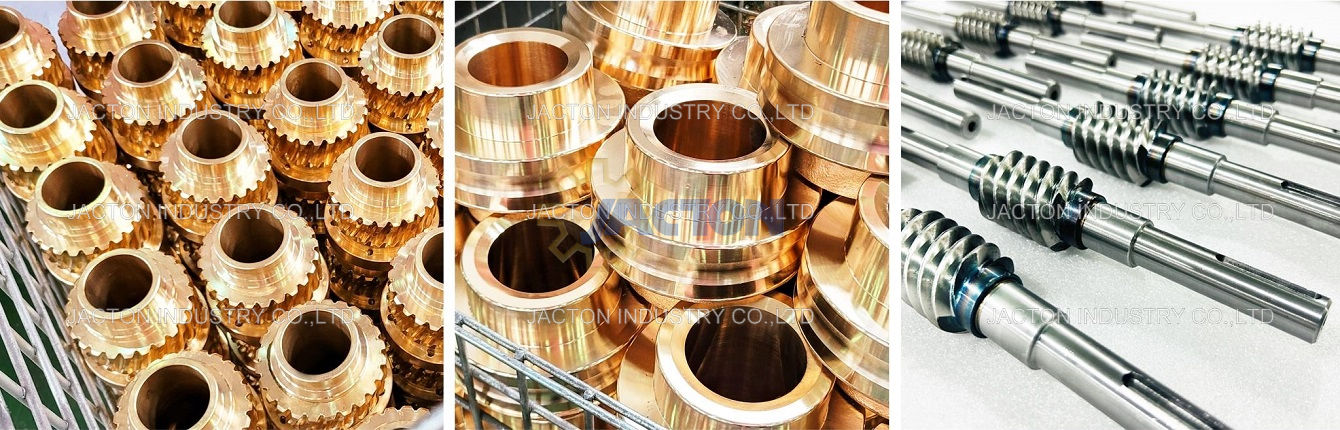

* Input Shaft (Worm): C45 Steel in high frequency heat treatment process. Custom Stainless Steel 304 or 316.
* Worm Wheel: ZQAl9-4 (Casting aluminum bronze) as Standard. Custom ZCuSn10Pb1(Casting tin bronze).
* Bearing: Anti-friction Ball Thrust Bearings for Worm Gear. Anti-friction Ball Bearings for Input Shaft(worm). Custom Stainless Steel 304.
* Motor Flange Adapter: High-strength Casting Motor Adapter, Ductile Iron. Custom Stainless Steel 304 or 316.
* Lubricants: Synthetic Grease, Extreme Pressure EP2 Lithium Grease.
Download
Speficications | Dimensional Drawings | Selection Guide | Catalog
Application Case

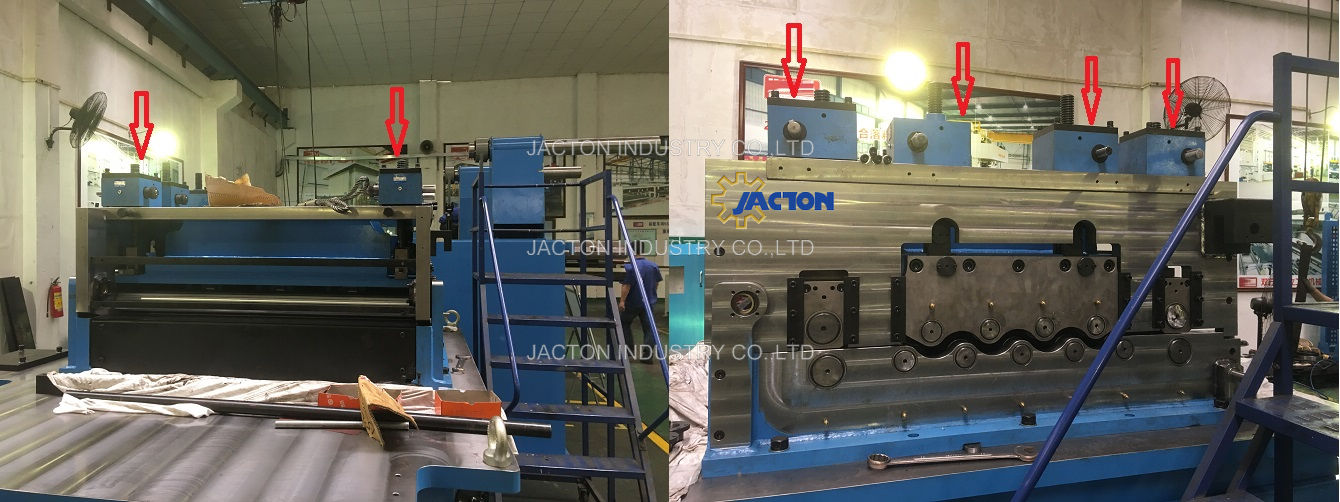

Worm gear ball screw jacks are fast and efficient. They can accurately position and hold loads. Examples include: Platform lifts, Damper adjustments, Ergonomic lifts, Maintenance lifts, Roll adjustments, Earth Station Antennas, Solar Trackers, Conveyor adjustments, Packaging equipment, and Gate adjustments.
