| 20 Ton Ball Screw Jacks Configurations: Upright Translating Ball Screw Jack, Inverted Translating Ball Screw Jack, Upright Rotating Ball Screw Jack, Inverted Rotating Ball Screw Jack, Double Clevis Ball Screw Jack, Upright Anti-rotation Ball Screw Jack, and Inverted Anti-rotation Ball Screw Jack. It is used only when the load to be moved (actuated) may rotate, i.e. the screw is unguided and does not prevent rotation. The anti-rotation device consists of a square steel tube which guides the movement of a square aluminium bronze guide block fitted to the end of the ball screw. The guide block also acts as a stop nut. | |||||||||
JTB-20T
JACTON
Product Description

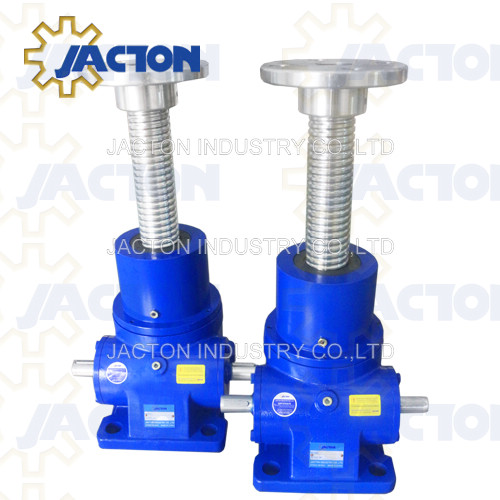

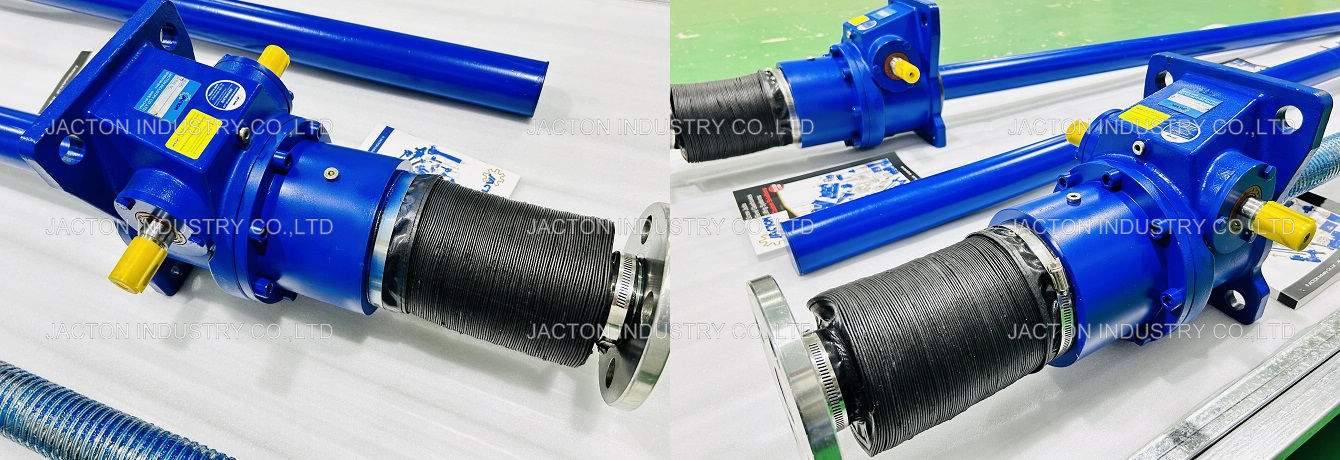

Classic Ball Screw Jack 20 Ton-63x10-Ball Screw. Ball Screw Jack is a highly efficient jack for high speed, high frequency operations. Major components include accurate ball screw and high precision worm gear. jacton ball screw generates high efficiency and its compact drive unit produces high power. Compared to the linear power jacks machine screw type, its high efficiency allows easier high speed drive. Long and predictable ball screw life. The higher efficiency of the ball screw drive also permits a longer duty cycle. Stop collar is A Prevents the screw from being removed from the jack gearbox. Fitted as standard on ball screw versions.
Main Features
* Maximum static load capacities 20 ton (20000kg).
* High precision ball screw sizes 63x10, custom high lead 63x20.
* Two gear ratios: high ratio 8:1, slow ratio 24:1, for high and slow linear speeds (up to 3500 mm/min).
* Custom stroke length of ball screw, maximum stroke 4000 mm in compression load, 5000 mm in tension load.
* Basic designs: Translating screw, Anti-rotation screw, and Rotating screw.

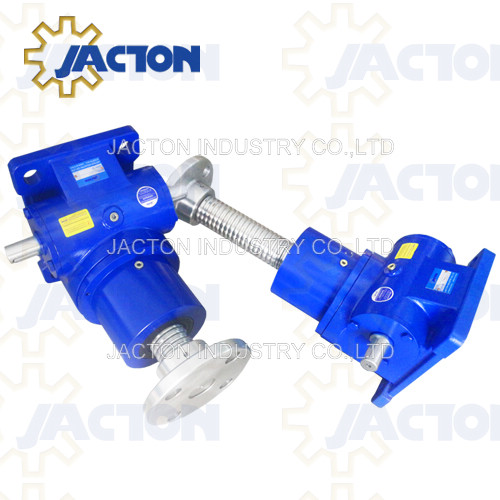

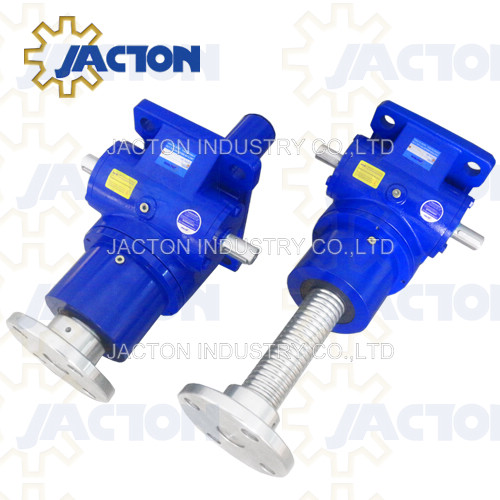

* Upright or Inverted mounting. Available in tension or compression loads.
* Ball screw end fittings: top plate, clevis end, threaded end, plain end, fork head and rod end.
* Standard with single lead ball screw, custom double or high lead ball screw which offers increased travel speed. Both of them require a brake or external locking device to hold position.
* Power source: hand wheel is not recommended, must be brake motor.
* Can be applied either individually use or combined into a exactly synchronized lifting system(multiple jack systems), linked by connecting shafts, bevel gearboxes, couplings, electric motors, gear reducers, limit switches and pillow blocks etc.
* Can be used as alternatives to hydraulic and pneumatic systems.
* High accuracy, high efficiency, high performance, high duty cycle, low backlash, long service life, and uniform lifting speed.
Product Material
We use the best materials to guarantee the performance and lifetime of the 20 Ton Ball Screw Jack you purchased.
Ball screw and nut is made from hardened alloy steel with hardened bearing balls carrying the load between nut and screw.
* Housing: High-strength Casting Housing, Ductile Iron.
* Ball Screw: SCM 450, S55C, Hardness: HRC 58-62.
* Ball Nut: SCM415H, Hardness: HRC 58-62
* Ball: SUJ2, Hardness: HRC 60 UP.
* Input Shaft (Worm): C45 Steel in high frequency heat treatment process. Custom Stainless Steel 304 or 316.
* Worm Wheel: ZQAl9-4 (Casting aluminum bronze) as Standard. Custom ZCuSn10Pb1(Casting tin bronze).
* Bearing: Anti-friction Ball Thrust Bearings for Worm Gear. Anti-friction Ball Bearings for Input Shaft(worm). Custom Stainless Steel 304.
* Motor Flange Adapter: High-strength Casting Motor Adapter, Ductile Iron. Custom Stainless Steel 304 or 316.
* Lubricants: Synthetic Grease, Extreme Pressure EP2 Lithium Grease.
Download
Speficications | Dimensional Drawings | Selection Guide | Catalog
Application Case
Worm gear ball screw jacks are Application in machine tilting system, photovoltaic installation, platform elevation system, manual positioning system, tilting elevation system, antenna orienation system, vertical drive system, scissor lift, shutter system, horizontal drive system, conveyor belt elevation system, press type system, three shaft jacton screw jack system, elevation system with integrated magnetic sensor, stirling tracker, solar tracker, parabolic solar concentration, door opening and closing system and 4 shafts transmission system.

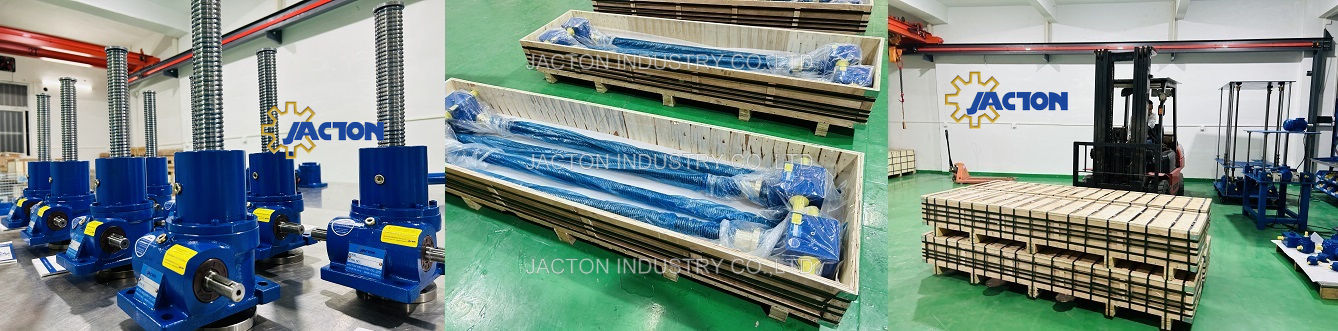

Packaging and Shipping
* 100% standard exporting plywood cases (international exporting standard wooden material with free fumigation).
* Express(Air): Factory to customers' company by FEDEX, DHL, UPS, TNT. Incoterms: EXW, DDU.
* Sea Freight: Factory to destination seaport by Vessel. Incoterms: CIF, FOB, EXW, CFR.
* Air Freight: Factory to destination airport by Airplane. Incoterms: CFR, EXW, FCA, CPT, CIP.
* Additional Options (Door to Door): Train Transportation, Truck Transportation, Ocean Shipping.
