| These bevel ball actuators are designed for high-speed, high-efficiency linear transmissions. They can work with a push or pull load applied exclusively in the axial direction. Made using bevel gear reducers and recirculating ball screws, the actuators are reversible under load so they must be driven by a brake motor. | |||||||||
JTGB19
JACTON
Product Description

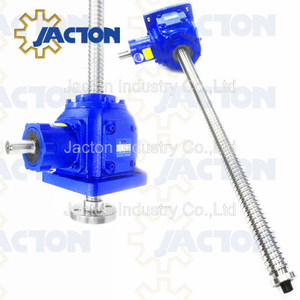

Bevel Gear Ball Screw Jack 3000kg-32x10 or 32x20-Ball Screw-High strength Casting Housing (Ductile Iron). Bevel gear screw jacks are made with spiral bevel reduction gears and ball screws, available in both rotating and travelling versions. The high performance actuators are also made with spiral bevel reduction gears and ball screws. Both products are suitable for linear transmissions under intensive use, high speeds, and continuous service. Trapezoidal screw versions can be made in this series.
Main Features
* Equipped with hardened spiral toothed bevel gear transmissions for high lifting speeds, greater duty cycles, high efficiency and long lifespan.
* Available in single shaft, two shaft and three shaft configurations. In two and three shaft configurations, the jack offers right angle characteristics with the ability to divide input power or torque, sending it equally in different directions.
* Maximum static load capacity 3000 kg. Maximum dynamic load capacity 1000 kg.
* High precision ball screw sizes 32x10 or 32x20, precise positioning, and uniform speed.
* Reduction gear ratio: 2.5:1. Travel 4 mm or 8 mm per turn of input shaft.
* There are no "standard" travel lengths and each bevel gear jack is built to specification, maximum stroke 1500 mm in compression load, 2500 mm in tension load.
* Basic designs: Translating screw, Anti-rotation screw, and Rotating screw.
* Upright or Inverted mounting. Available in tension or compression loads.
* Standard with single lead ball screw, custom double or high lead ball screw which offers increased travel speed and require a brake or external locking device to hold position.
* Screw end fittings: top plate, clevis end, threaded end, plain end, fork head and rod end.
* Power source: electrically by brake motor driven.
* Easy synchronized operation: System design such as the simultaneous operation of multiple jacks is easy.
* Optimal for low-speed operation: The driving system has less noise because machinery can be driven at a lower input speed.
* Higher efficiency, higher lifting speed, higher duty cycle, longer lifespan
* Simple and effective solution in comparison with hydraulic and pneumatic systems.
Product Material
We use the best materials to guarantee the performance and lifetime of the Bevel Gear Ball Screw Jack 3000kg you purchased.
* Spiral Bevel Gears: Lapped together in pairs, high quality alloy steel, case hardened.
* Housing: High-strength Casting Housing, Ductile Iron.
* Ball Screw: SCM 450, S55C, Hardness: HRC 58-62.
* Ball Nut: SCM415H, Hardness: HRC 58-62.
* Input Shaft / Output Shafts: Hardened, alloy steel. Custom Stainless Steel 304 or 316.
* Drive Sleeve: High strength bronze ZQAl9-4 (Casting aluminum bronze) as Standard. Custom bronze ZCuSn10Pb1(Casting tin bronze).
* Bearing: Anti-friction Tapered Roller Bearings. Custom Stainless Steel 304.
* Motor Flange Adapter: High-strength Casting Motor Adapter, Ductile Iron. Custom Stainless Steel 304 or 316.
Download
Speficications | Dimensional Drawings | Selection Guide | Catalog
Application Case
Bevel Gear Ball Screw Jacks are applications in Paper, press, printing industry, Gypsum factories, Sheet metal forming machinery, Mechanical lifting applications, Platform lifting applications, Hydraulic cylinder replacements, Conveyor tensioning, Food processing machinery, Construction sector, Bridge jacks for road and bridge lifting, Shipyards, Opening and closing of penstocks, Industrial process, Lifting table drives, Roll form machinery, Mining industry, Defense industry, Lift tables, and Stage setup applications.
