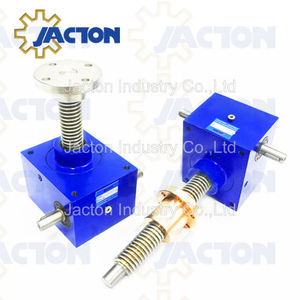

150 kN Cubic Machine Screw Jacks are devices that are used to convert rotational movements into linear motion, incorporating a lead screw to help aid this conversion. They are ideal for applications that require lifting, lowering, tipping, moving or holding. | |||||||||
JTC150
JACTON
Product Description
Cubic Machine Screw Jack 150 kN-60x9-Trapezoidal Screw. Ductile cast iron in the compact design. The jacks are designed for both pushing and pulling forces, and for position-independent functioning. The cubic housing, standard mounting material and end-pieces, and pre-drilled flange holes permit the ideal installation of motor, gears and shaft encoder. Synchronisation of several worm gear screw jacks is simple with the complete range of accessories.
Main Features
* Maximum static load capacities 150 kN (15000kg).
* Self-locking trapezoidal screw sizes Tr 60x9.
* Two gear ratios: high ratio 9:1, slow ratio 36:1.
* Custom stroke length, maximum stroke 3500 mm in compression load, 4500 mm in tension load.
* Basic designs: Translating screw, Keyed screw, and Rotating screw.
* Upright or Inverted mounting. Available in tension or compression loads.
* Screw end fittings: top plate, clevis end, threaded end, plain end, fork head and rod end.
* Power source: manual hand wheel, electric motor, or both together.
* Single unit or multiple screw jack systems with synchronized lifting, linked by connecting shafts, bevel gearboxes, couplings, electric motors, gear reducers, limit switches and pillow blocks etc.
Product Material
We use the best materials to guarantee the performance and lifetime of the 150 kN Cubic Machine Screw Jack you purchased.
* Housing: Ductile Cast Iron.
* Lifting Screw: C45 Steel as Standard. Custom Stainless Steel 304 or 316.
* Input Shaft (Worm): C45 Steel in high frequency heat treatment process. Custom Stainless Steel 304 or 316.
* Worm Gear / Travelling Nut / Safety Nut: ZQAl9-4 (Casting aluminum bronze) as Standard. Custom ZCuSn10Pb1(Casting tin bronze).
* Bearing: Anti-friction Ball Thrust Bearings for Worm Gear. Anti-friction Ball Bearings for Input Shaft(worm). Custom Stainless Steel 304.
* Motor Flange Adapter: High-strength Casting Motor Adapter, Ductile Iron. Custom Stainless Steel 304 or 316.
* Lubricants: Synthetic Grease, Extreme Pressure EP2 Lithium Grease.
