| K97 KF97 Bevel Geared Motors KA97 KAF97 Right-angle Gearboxes with motor power 1.1kw, 1.5kw, 2.2kw, 3kw, 4kw, 5.5kw, 7.5kw, 11kw, 15kw, 18.5kw, 22kw and 30kw, max. permissible torque up to 4300Nm, transmission ratios from 8.95 to 196.05. Available mounting mode: foot mounted, B5 or B14 flange mounted, short flange mounted, torque arm mounted. Output shaft: solid shaft, hollow shaft (with key, with shrink disc and with involute spline). K97: Foot-mounted, solid shaft output. KA97: Keyed hollow shaft output. KAB97: Foot-mounted, hollow shaft output. KF97: B5 Flange-mounted, solid shaft output. KAF97: B5 Flange-mounted, hollow shaft output. KAT97: Torque-arm mounted, hollow shaft output. KAZ97: B14 Flange-mounted, hollow shaft output. | |||||||||
K97, KA97, KF97, KAF97, KAB97, KAT97, KAZ97
JACTON
Product Description

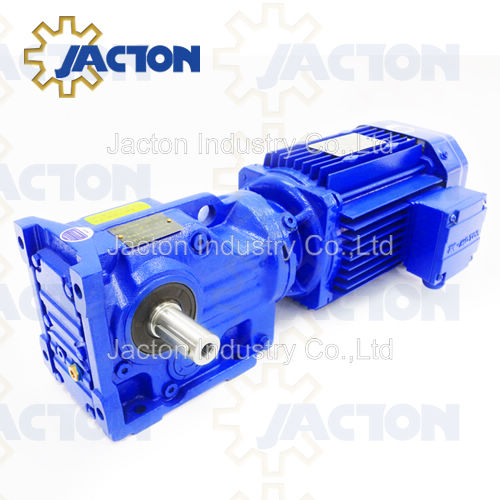

K97 KF97 Bevel Geared Motors KA97 KAF97 Right-angle Gearboxes with motor power 1.1kw, 1.5kw, 2.2kw, 3kw, 4kw, 5.5kw, 7.5kw, 11kw, 15kw, 18.5kw, 22kw and 30kw, max. permissible torque up to 4300Nm, transmission ratios from 8.95 to 196.05. Available mounting mode: foot mounted, B5 or B14 flange mounted, short flange mounted, torque arm mounted. Output shaft: solid shaft, hollow shaft (with key, with shrink disc and with involute spline).The bevel-helical gear motors are designed based on module, which bring many difference kinds of combinations, mounting types, and structure designs. Wide range of rotation ratio can meet various of working condition. This property is particularly interesting, for example, for machine applications with limited space available. With their high efficiency in both directions of rotation and at any input speed, these right-angle gear motors are very energy-efficient. Their high-endurance gearing is wear-free and lasts a gear unit's lifetime. For precise positioning tasks, you can use the helical bevel gear units with reduced backlash.
* K97: Foot-mounted, solid shaft output.
* KA97: Keyed hollow shaft output.
* KAB97: Foot-mounted, hollow shaft output.
* KF97: B5 Flange-mounted, solid shaft output.
* KAF97: B5 Flange-mounted, hollow shaft output.
* KAT97: Torque-arm mounted, hollow shaft output.
* KAZ97: B14 Flange-mounted, hollow shaft output.
Main Features
1. Compact structure, modular design, right angle output.
2. High efficiency of the gear units of over 95%.
3. Multi-stage(2 or 3 stages) gear units for low output speed.
4. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm.
5. Can be combined with other types of gearboxes (Such as R Series, UDL Series).
6. Can be combined with various motors, for example: normal motor, brake motor, explosion-proof motor, frequency conversion motor, servomotor, stepper motor, IEC motor and other motors.
7. Space saving, reliable and durable, high capacity to withstand overload, wide range of rotation ratio, low energy consumption, superior performance, high efficiency, long life, low vibration, low noise, easy installation and beautiful appearance.
Product Components
Helical Bevel Gear Motors typically consists of housing, input and output shafts, a set of helical gears, and a set of bevel gears. The helical gears are used to transmit power from the input shaft to the bevel gears, which in turn transmit power to the output shaft. The hard tooth surface gear use the high quality alloy steel, the process of carburizing and quenching, grinding, which give it following characters: Stable transmission, low noise and temperature, high loading and long working life.
* Housing: High strength cast iron
* Gears: Helical-bevel Gears, 20CrMnTi
* Input Configurations
1. Equipped with Electric Motors
2. Solid Shaft Input
3. IEC Motor Flange
* Output Configurations
1. Solid Shaft Output
2. Hollow Shaft Output
* Applicable Motors
1. Three Phase AC Motors (normal)
2. Single Phase AC Motors (normal)
2. Brake Motors
3. Inverter Motors
4. Multi-speed Motors
5. Explosion-proof Motors
6. Roller Motors
7. Servo Motors
8. Stepper Motors
Download
Speficications | Dimensional Drawings | Selection Guide | Wiring Diagram For Limit Switches | Catalog
Application Case
Helical Bevel Gear Motors are mainly used in sewage treatment, pharmacy, agriculture equipment, oil industry, belt conveyor, mixer, mixing machine, material handling, papermaking, sugar making, engineering machines, precision machine tools, military equipment, metallurgical equipment, wind power equipment, chemical equipment, solar energy, industrial robots, transportation equipment, engineering machinery, textile equipment, rubber and plastic equipment, food machinery, daily necessities machinery, flat glass production lines, packaging equipment, printing equipment and automotive production lines.
Packaging and Shipping
* 100% standard exporting plywood cases (international exporting standard wooden material with free fumigation).
* Express(Air): Factory to customers' company by FEDEX, DHL, UPS, TNT. Incoterms: EXW, DDU.
* Sea Freight: Factory to destination seaport by Vessel. Incoterms: CIF, FOB, EXW, CFR.
* Air Freight: Factory to destination airport by Airplane. Incoterms: CFR, EXW, FCA, CPT, CIP.
* Additional Options (Door to Door): Train Transportation, Truck Transportation, Ocean Shipping.
