| F Series Parallel-shaft Helical Gearmotors are perfectly matched to limited installation space. The axis-parallel gear units have a slim design. Nonetheless, they offer a power range from 130 to 20,000 Nm. We think they are always a good choice when space is limited. One of our best gear units for limited installation space. A wide range of mounting positions and variants enable a broad spectrum of applications even under difficult installation conditions – without having to compromise on the performance. And what applies to many of our gear units: long operating lives without maintenance and wear-free gearing with a high fatigue strength. Basic designs: Parallel shaft gearboxes with double shafts, Hollow Bore Parallel Shaft Helical Gearbox with Input Shaft, Hollow shaft with Shrink Disc Parallel Shaft Helical Gearmotor, Shaft Mount Gear Drives for Screw Conveyors, Hollow Shaft Shrink Disk Parallel Shaft Helical Gearmotor with Flange Mounted and Hollow Bore Parallel Shaft Helical Geared Motor. | |||||||||
F37, FA37, FF37, FAF37, FAB37, FAT37, FAZ37
JACTON
Product Description

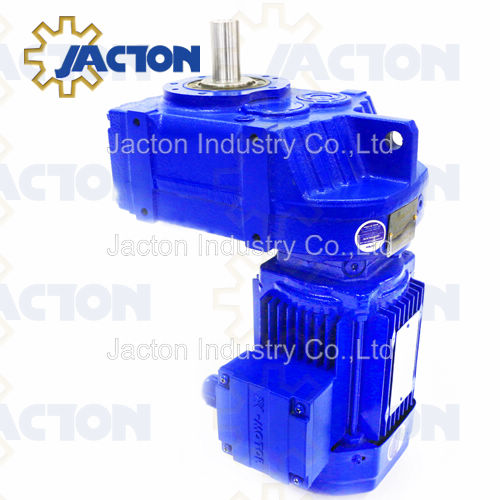

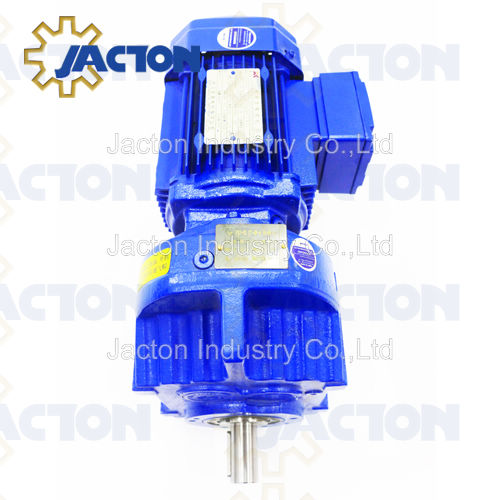

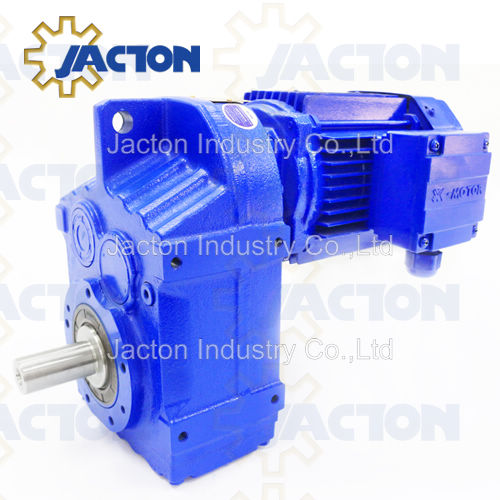

F37 FF37 Parallel Shaft Helical Gear Motor FA37 FAF37 Speed Reducers with motor power 0.18kw, 0.25kw, 0.37kw, 0.55kw, 0.75kw, 1.1kw, 1.5kw, 2.2kw and 3kw, maximum permissible torque up to 200Nm, transmission ratios from 3.81 to 128.51. Transmission stage: 2 stage or 3 stage. Transmission efficiency: 2-stage 96%; 3-stage 94%. Mounting options: foot mounted, flange mounted, short flange mounted, torque arm mounted. Output shaft: solid shaft, hollow shaft (with key, with shrink disc and with involute spline). 2-stage or 3-stage helical gears. The gears are made of high quality alloy steel. The surface is hardened with the processes of carburizing and quenching, the teeth are made by fine grinding. So, as a whole, the gear is characterized with good tightness. Typically used in extruder, rotary cutter, cement mill, convery machine, conveyor and materials processing applications.
Parallel-shaft helical gearmotors with perfectly matched to limited installation space. The axis-parallel gear units have a slim design. We think they are always a good choice when space is limited. One of our best gear units for limited installation space. A wide range of mounting positions and variants enable a broad spectrum of applications even under difficult installation conditions – without having to compromise on the performance. And what applies to many of our gear units: long operating lives without maintenance and wear-free gearing with a high fatigue strength.
* F37: Foot-mounted, solid shaft output.
* FA37: Keyed hollow shaft output.
* FAB37: Foot-mounted, hollow shaft output.
* FF37: B5 Flange-mounted, solid shaft output.
* FAF37: B5 Flange-mounted, hollow shaft output.
* FAZ37: B14 Flange-mounted, hollow shaft output.
* FAT37: Torque-arm mounted, hollow shaft output.
* FH37, FHB37, FHF37, FHZ37: Hollow shaft output and shrink disk.
* FV37, FVB37, FVF37, FVZ37: Hollow shaft output and splined hollow shaft.
Main Features
1. Compact structure, modular design.
2. High efficiency of the gear units of over 95%.
3. Multi-stage(2 or 3 stages) gear units for low output speed.
4. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm.
5. Can be combined with other types of gearboxes (Such as R Series, UDL Series).
6. Can be combined with various motors, for example: normal motor, brake motor, explosion-proof motor, frequency conversion motor, servomotor, stepper motor, IEC motor and other motors.
7. Space saving, reliable and durable, high capacity to withstand overload, wide range of rotation ratio, low energy consumption, superior performance, high efficiency, long life, low vibration, low noise, easy installation and beautiful appearance.
Product Components
We use the best materials to guarantee the performance and lifetime of the parallel shaft helical gearmotors you purchased.
* Housing: High strength cast iron
* Gears: Hardened Helical Gears
* Input Configurations
1. Equipped with Electric Motors
2. Solid Shaft Input
3. IEC Motor Flange
* Output Configurations
1. Solid Shaft Output
2. Hollow Shaft Output
* Applicable Motors
1. Three Phase AC Motors (normal)
2. Single Phase AC Motors (normal)
2. Brake Motors
3. Inverter Motors
4. Multi-speed Motors
5. Explosion-proof Motors
6. Roller Motors
7. Servo Motors
8. Stepper Motors
