| K37, KA37, KF37, KAF37, KAB37, KAT37, KAZ37 Helical-bevel Gear Reducers are adopt two pairs bevel gears and a pair helical drive, make the input and output submitting a right angle. Helical bevel drives ,big superposition factor ,strong carrying capacity, drive balanced and credible. The material of gears is 20CrMnTi alloy steel and the hardness can reach to HRC58°~ 62° after tempering, cementiting, quenching, heat treatment etc. All the gears are processed by accurate grinding and the precision can reach to grade 6~5. Mainly used in Metallurgy, Sewage treatment, Chemical Industry, Pharmacy, Agriculture equipment, Oil industry, Belt Conveyor, Food machine, Mixer, Mixing machine, Automatic production line, Packaging, Material handling, Papermaking, Sugar making, Engineering Machines, Construction, Mechanical-electromechanical industry etc. | |||||||||
K37, KA37, KF37, KAF37, KAB37, KAT37, KAZ37
JACTON
Product Description

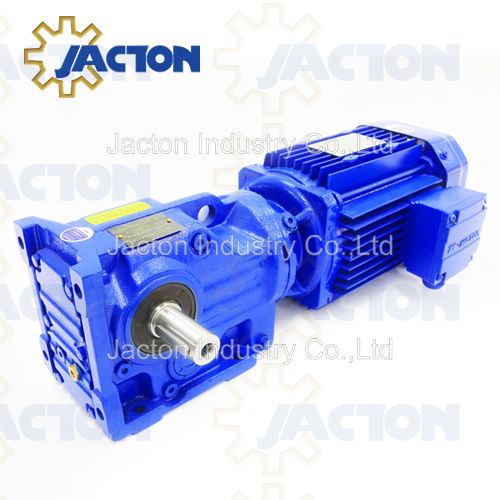

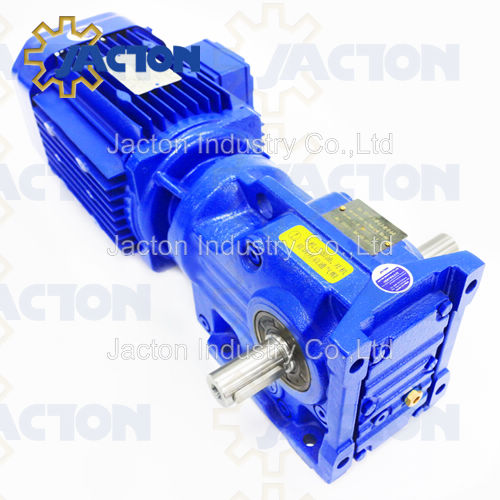

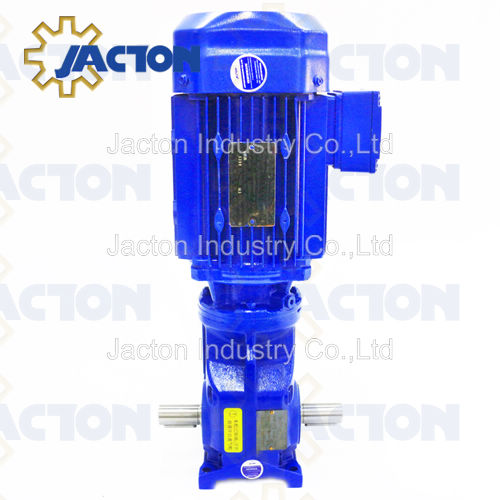

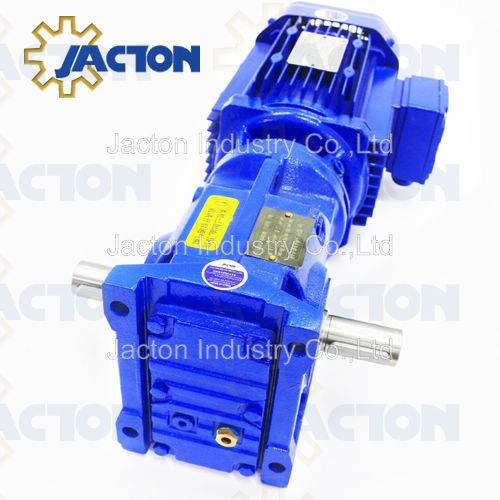

K37 KF37 Helical Bevel Gear Motor KA37 KAF37 Gearboxes Speed Reducer with motor power 0.18kw, 0.25kw, 0.37kw, 0.55kw, 0.75kw, 1.1kw, 1.5kw, 2.2kw, and 3kw. Maximum permissible torque up to 200Nm, transmission ratios from 5.36 to 106.38. The bevel-helical gear motors are designed based on module, which bring many difference kinds of combinations, mounting types, and structure designs. Wide range of rotation ratio can meet various of working condition. This property is particularly interesting, for example, for machine applications with limited space available. With their high efficiency in both directions of rotation and at any input speed, these right-angle gear motors are very energy-efficient. Their high-endurance gearing is wear-free and lasts a gear unit's lifetime. For precise positioning tasks, you can use the helical bevel gear units with reduced backlash.
* K37: Foot-mounted, solid shaft output.
* KA37: Keyed hollow shaft output.
* KAB37: Foot-mounted, hollow shaft output.
* KF37: B5 Flange-mounted, solid shaft output.
* KAF37: B5 Flange-mounted, hollow shaft output.
* KAT37: Torque-arm mounted, hollow shaft output.
* KAZ37: B14 Flange-mounted, hollow shaft output.
Main Features
1. Compact structure, modular design, right angle output.
2. High efficiency of the gear units of over 95%.
3. Multi-stage(2 or 3 stages) gear units for low output speed.
4. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm.
5. Can be combined with other types of gearboxes (Such as R Series, UDL Series).
6. Can be combined with various motors, for example: normal motor, brake motor, explosion-proof motor, frequency conversion motor, servomotor, stepper motor, IEC motor and other motors.
7. Space saving, reliable and durable, high capacity to withstand overload, wide range of rotation ratio, low energy consumption, superior performance, high efficiency, long life, low vibration, low noise, easy installation and beautiful appearance.
Product Components
Helical Bevel Gear Motors typically consists of housing, input and output shafts, a set of helical gears, and a set of bevel gears. The helical gears are used to transmit power from the input shaft to the bevel gears, which in turn transmit power to the output shaft. The hard tooth surface gear use the high quality alloy steel, the process of carburizing and quenching, grinding, which give it following characters: Stable transmission, low noise and temperature, high loading and long working life.
* Housing: High strength cast iron
* Gears: Helical-bevel Gears, 20CrMnTi
* Input Configurations
1. Equipped with Electric Motors
2. Solid Shaft Input
3. IEC Motor Flange
* Output Configurations
1. Solid Shaft Output
2. Hollow Shaft Output
* Applicable Motors
1. Three Phase AC Motors (normal)
2. Single Phase AC Motors (normal)
2. Brake Motors
3. Inverter Motors
4. Multi-speed Motors
5. Explosion-proof Motors
6. Roller Motors
7. Servo Motors
8. Stepper Motors
Download
Speficications | Dimensional Drawings | Selection Guide | Wiring Diagram For Limit Switches | Catalog
Application Case
Helical Bevel Gear Motors are mainly used in sewage treatment, pharmacy, agriculture equipment, oil industry, belt conveyor, mixer, mixing machine, material handling, papermaking, sugar making, engineering machines, precision machine tools, military equipment, metallurgical equipment, wind power equipment, chemical equipment, solar energy, industrial robots, transportation equipment, engineering machinery, textile equipment, rubber and plastic equipment, food machinery, daily necessities machinery, flat glass production lines, packaging equipment, printing equipment and automotive production lines.
